Description
The ultimate industrial-grade Ethernet cable specifically engineered for machine vision applications where reliability is non-negotiable. Features ultra-high flexibility, secure locking screws, and superior EMI shielding for consistent performance in demanding environments.
Key Parameters
| Feature | Specification |
|---|---|

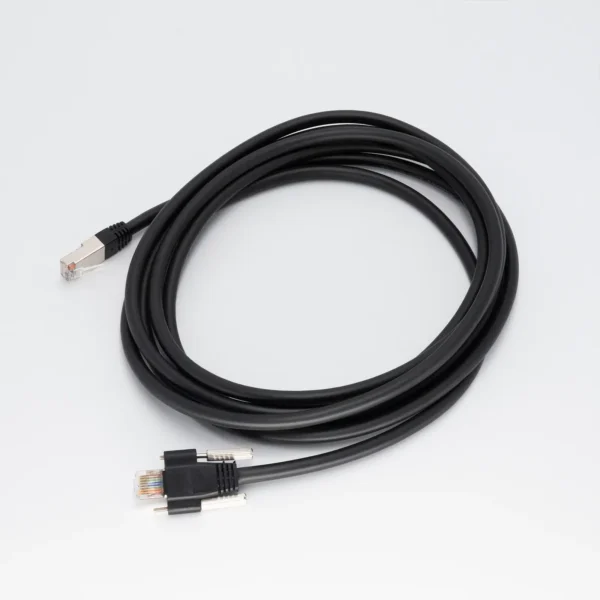

| Type | Cat5E RJ45 Ethernet Cable with Locking Screws |
| Construction | 8CX28AWG with High-Flex Design |

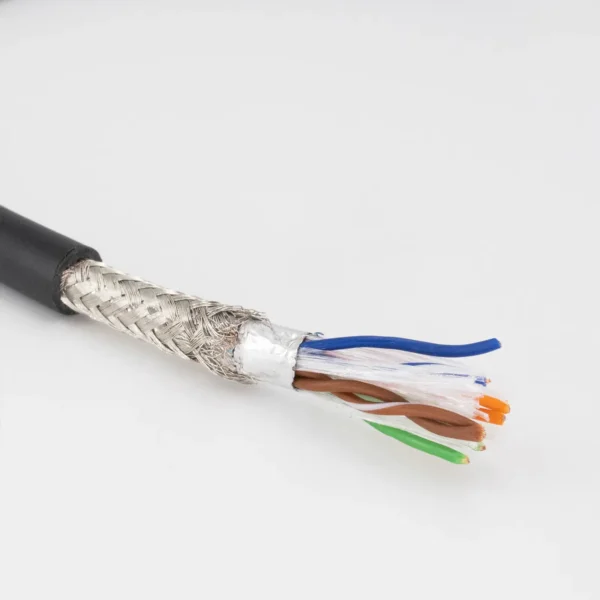

| Shielding | Double-Layer (99% Coverage): Braided Tinned Copper + AL/PET Foil |
| Flex Rating | 20,000,000+ Drag Chain Cycles Tested |

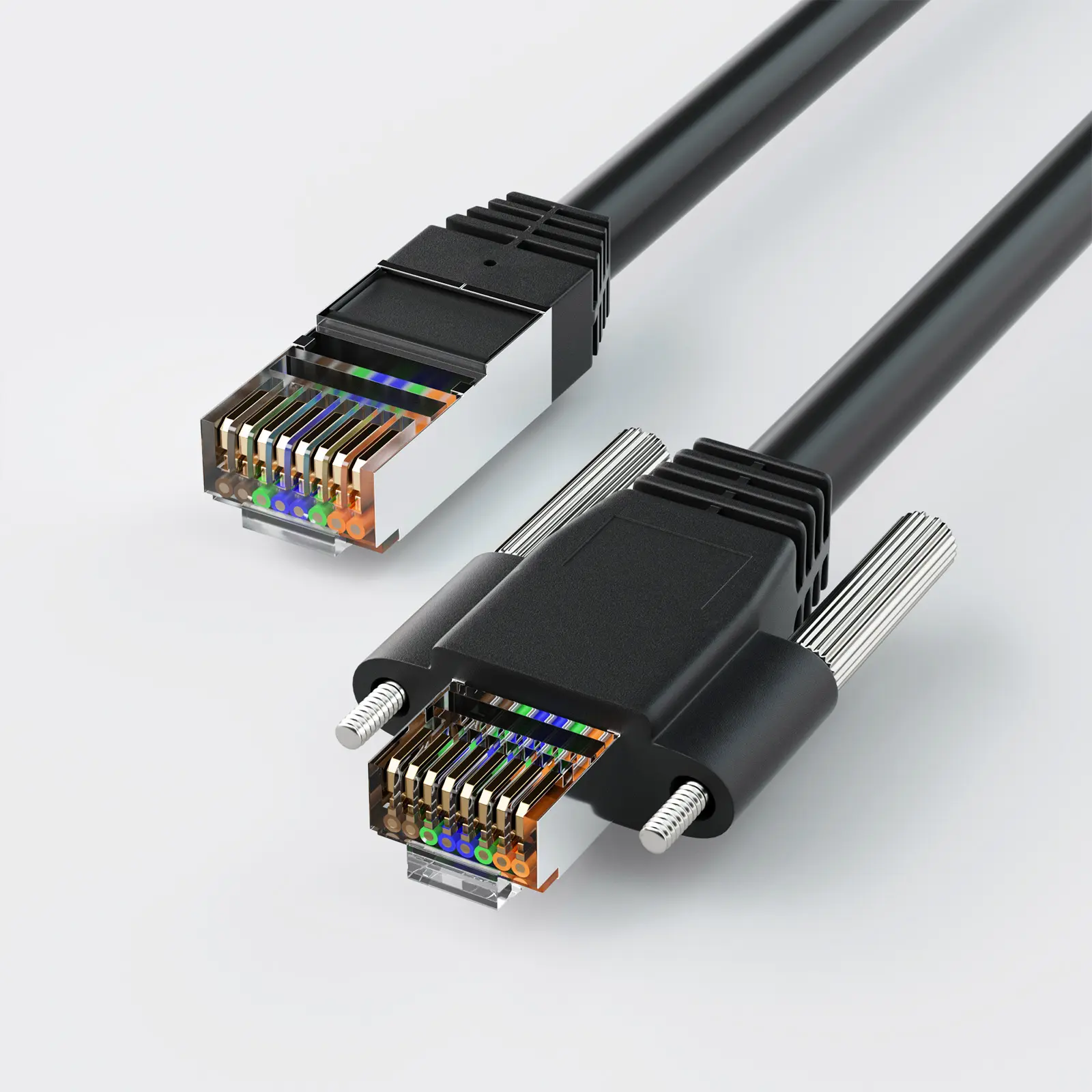

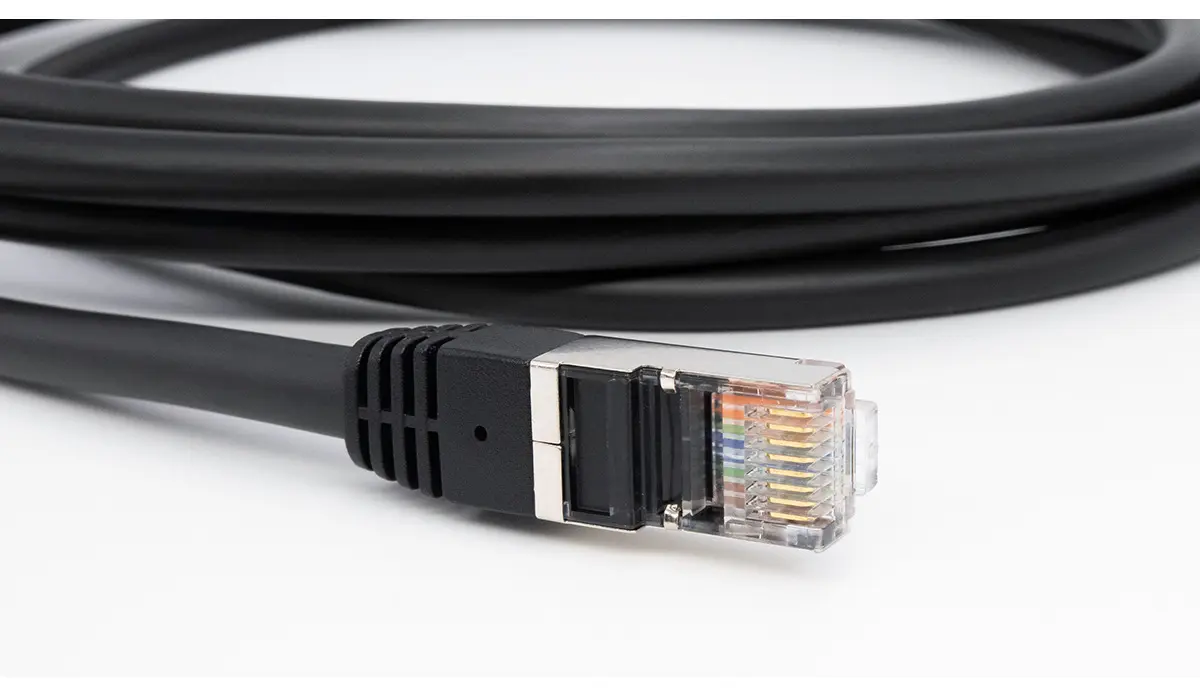

| Connectors | Industrial RJ45 with Horizontal Thumbscrews |
| Temperature Range | -20°C to 80°C (-10°C to 50°C for Moving Applications) |
| Available Lengths | 3m, 5m, 8m, 10m, 15m, 20m, 25m, 30m |
| Compatibility | All Major Camera Brands with RJ45 GigE Interface |
| Flame Retardancy | VW-1 Rated |
| Bill Of Materials | Wiring Diagram | |||
| Item | Description | QTY | Specification |  |
| ① | Wire | 1 | GIGE CABLE CAT5E BLACK LF 4PX26AWG | |
| ② | RJ45 Connector | 2 | 8P8C | |
| ③ | Screw Rod | 2 | M2.0*0.4 4.75 | |
| ④ | Inner Mold | 1 | PE(J5019) | |
| ⑤ | Outer Mold | 1 | DWHC-10035(Black) | |

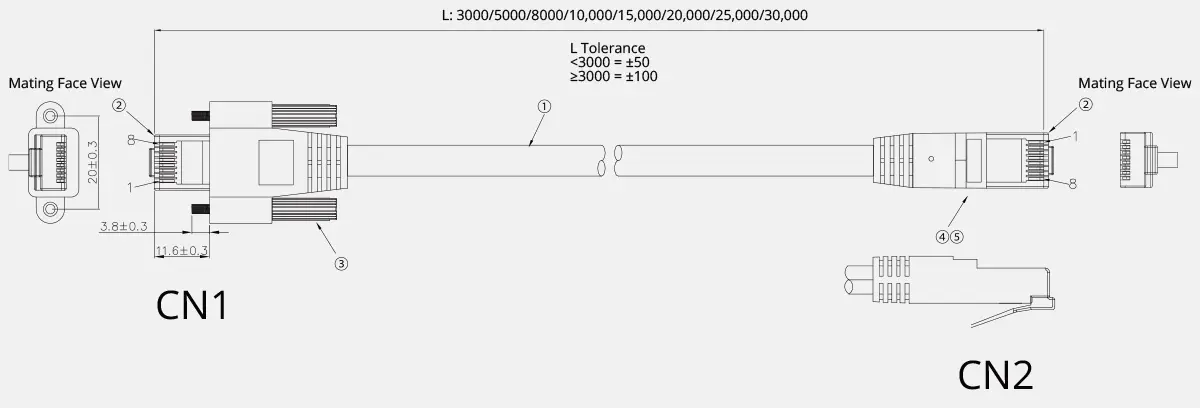

| Drawing | Pair Twist Insulator Colour | ||
 |
Pair Twist | Insulator Colour 1 | Insulator Colour 2 |
| 1 | Blue | Blue / White | |
| 2 | Orange | Orange / White | |
| 3 | Green | Green / White | |
| 4 | Brown | Brown / White | |
| Blue / White: White line is injected on the blue insulator and occupys 20-25% of the dimension. The same for others. | |||
| Model NO. | OLA-GIGE-7-1-3-XM CABLE | Printing | Ethernet, 4PX26AWG, 80°C, 30V, VW-1, LF | ||
| Style | GIGE Ethernet/T/20276-SB BLACK LF 4PX26AWG | Size | 4PX26AWG | ||
| Approbation | UL20276 AWM 80°C 30V | Flame Retardant Grade | VW-1 | ||
| Conductor | Size | 26AWG/4P | Shielded | Al/Pet | 0.05*20mm |
| Cond. Material | Bare Copper BC | Braid | 24/8/0.1TC | ||
| Construction | 30/0.08 BC | Covered | 99% Min | ||
| Diameter | 0.51mm | Jacketed | Material | PVC | |
| Tolern | ±0.003mm | Avg.Thick. | 0.765mm | ||
| Insulation | Material | HDPE | Min.Thick. | 0.723mm | |
| Avg.Thick. | 0.207mm | Diameter | ø6.5±0.2mm | ||
| Min.Thick. | 0.184mm | Colour | Black (Similar to RAL 9005) | ||
| Diameter | 0.97±0.05mm | Electrical Properties | Conductor Resistance | ≤124 Ω/km 20°C | |
| Colour | (Bule*Bule/White) | Test Voltage | 500V/1min | ||
| (Orange*Orange/White) | Insulating Resistance | > 10 MΩ/km 20°C | |||
| (Green*Green/White) | Characteristic Impedance | 100±15Ω | |||
| (Brown*Brown/White) | Wokring Tempearture | Fixed Installation | -20°C ~ 80°C | ||
| Pair Twist | Pair Twist | 1P*26AWG | Moved Installation | -5°C ~ 50°C | |
| Diameter | 1.94mm | Minimal Bending Radius | Fixed Installation | 5 X Cable-ø | |
| Assembly Standed | 26AWG/4P | Moved Installation | 8.5 X Cable-ø | ||
| Quality Certifications |     |
||||

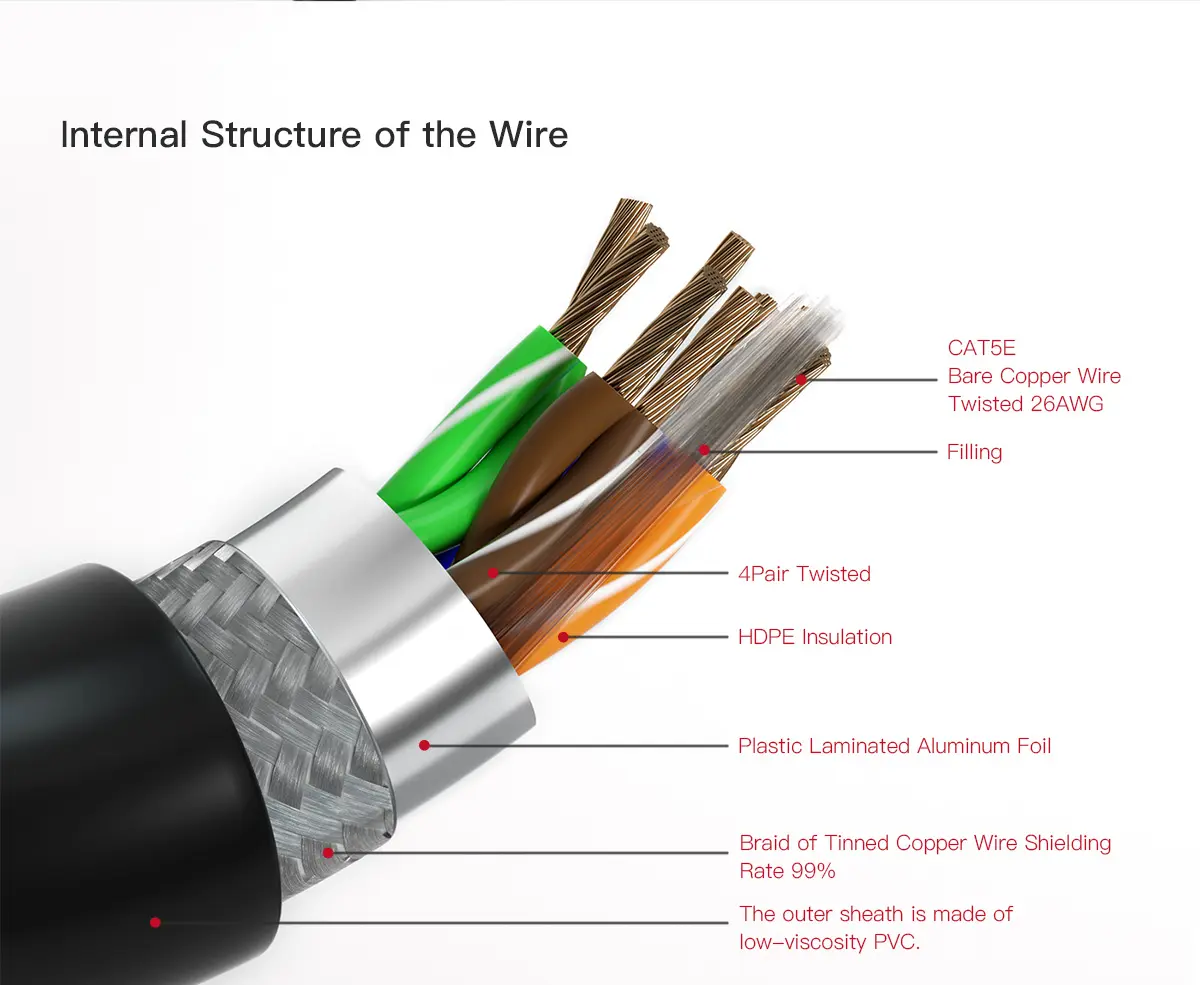

Industrial-Grade Construction for Maximum Durability
This isn’t an ordinary Ethernet cable. Specifically engineered for industrial vision applications, every component is designed for reliability in demanding environments:
- Premium Internal Structure: Features 26AWG twisted copper conductors with HDPE insulation for superior signal integrity
- 99% EMI/RFI Shielding: Double-layer protection with braided tinned copper and aluminum foil shields outperforms standard cables (85% coverage)
- PVC Outer Jacket: Protects against oils, chemicals, and physical wear in industrial settings
- Oxidation-Resistant Contacts: Pure copper with gold plating ensures reliable connections without signal degradation over time

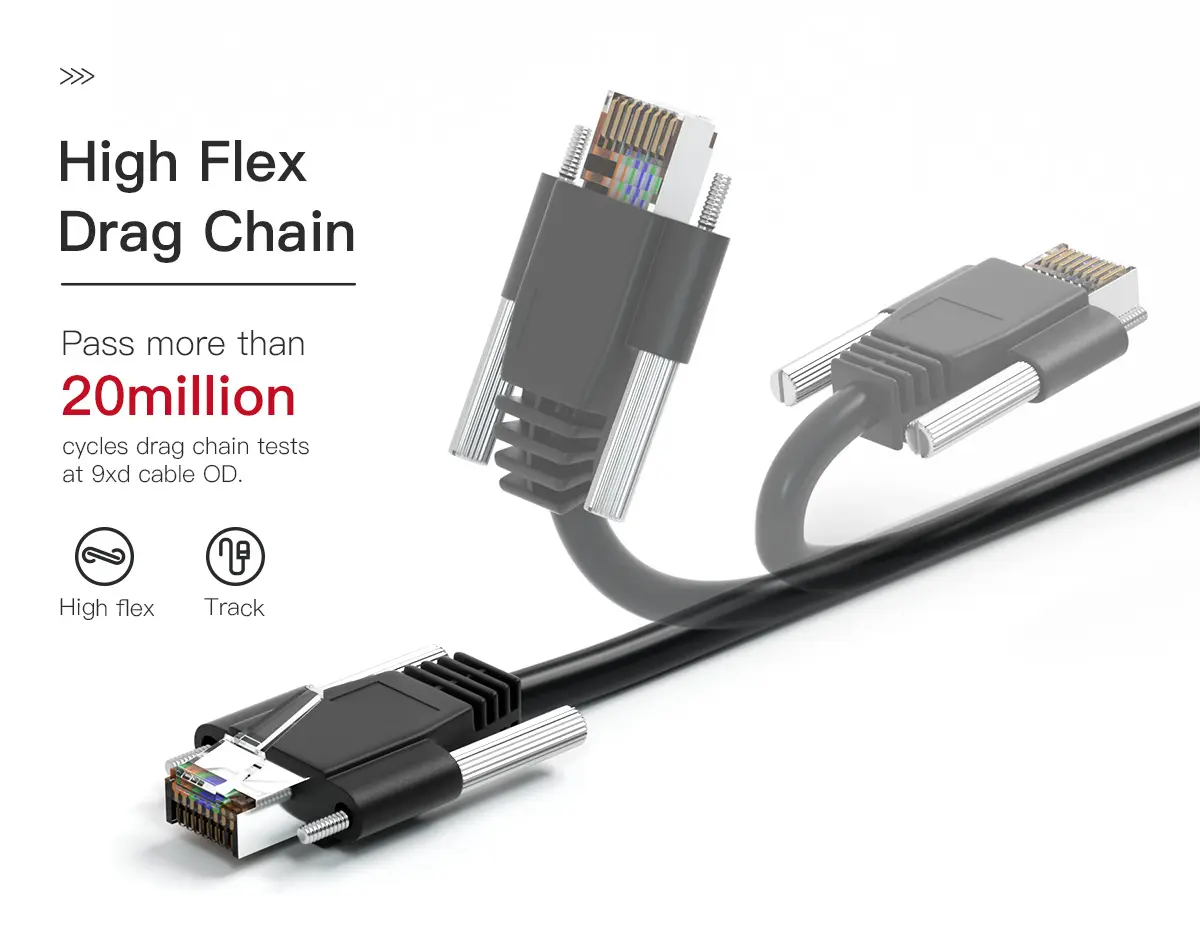

Exceptional Flexibility for Moving Applications
Tested to withstand over 20 million drag chain cycles without failure, this cable is ideal for robots, moving gantries, and other applications requiring constant flexing:
- 100,000+ Flexing Cycles: Maintains signal integrity through repeated bending
- 50,000+ Torsion Cycles: Resists twisting forces without internal damage
- 8X Cable Diameter Minimum Bend Radius: Perfect for tight installation spaces

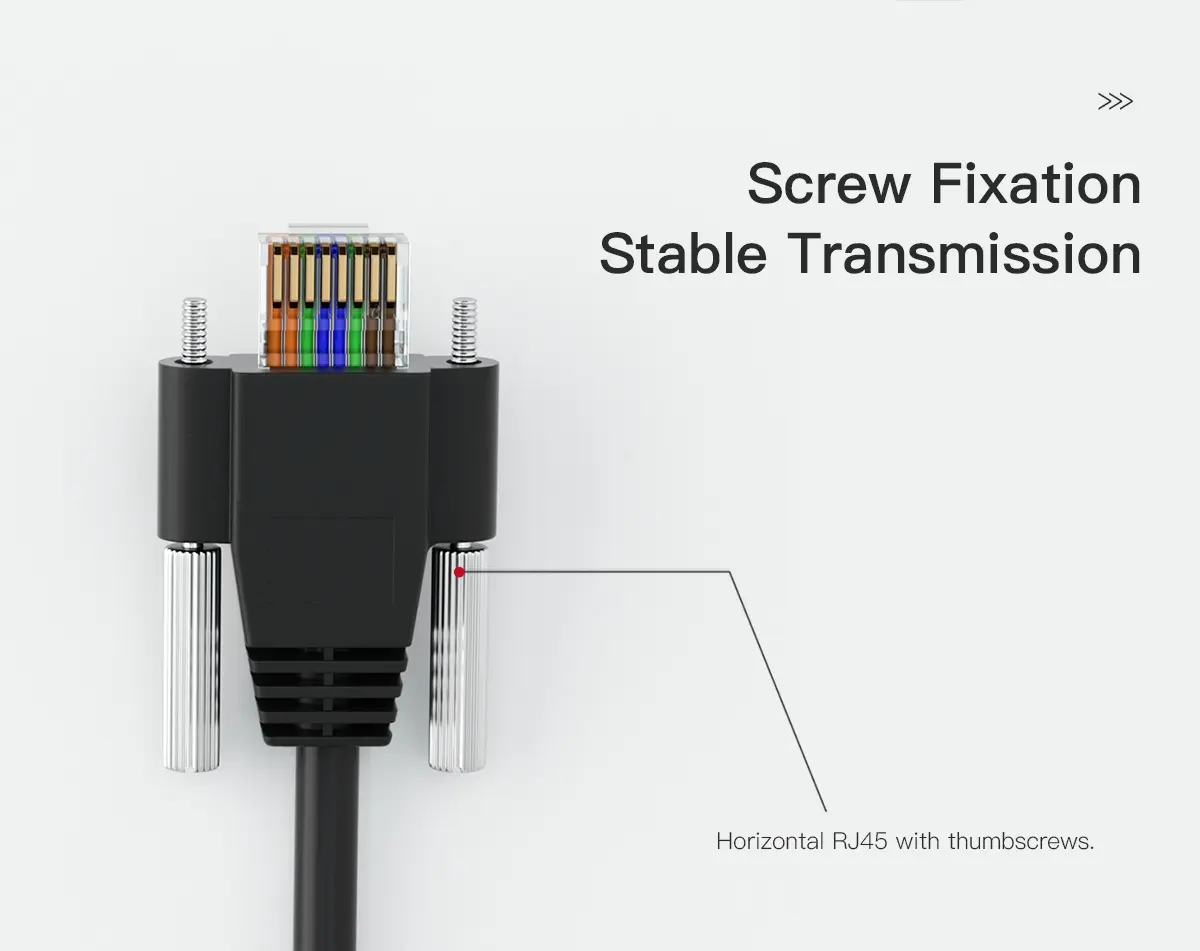

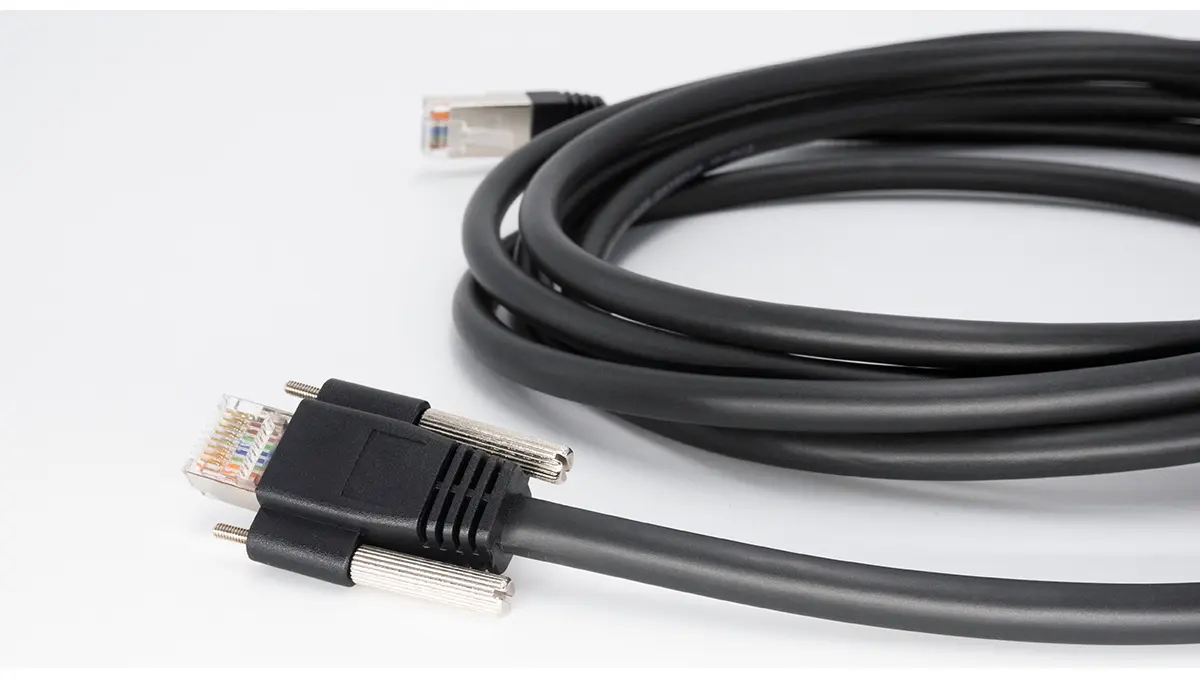

Secure Connection System
The horizontal RJ45 connectors with thumbscrews provide a critical advantage for industrial vision systems:
- Vibration-Proof Connection: Eliminates disconnections due to machine vibration
- Quick Installation/Removal: No tools required for secure attachment
- Space-Saving Design: Compact connector profile without unnecessary peripherals

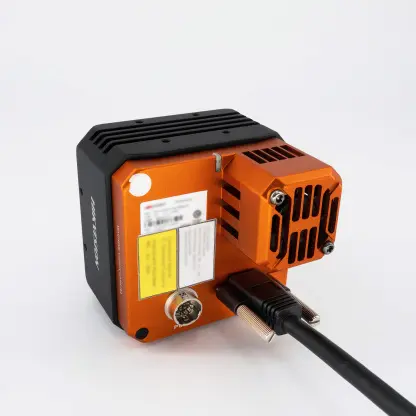

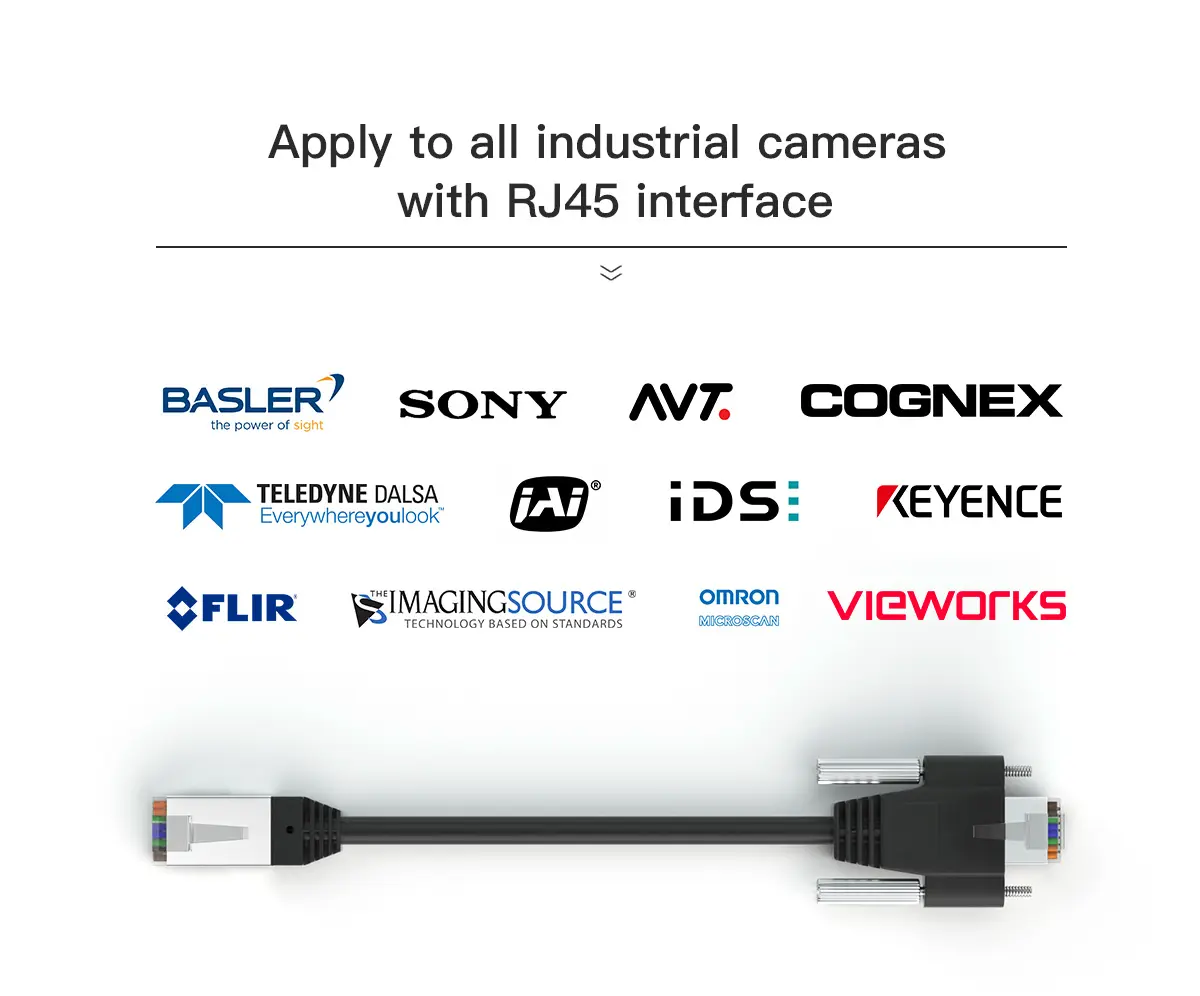

Universal Camera Compatibility
Works seamlessly with all major industrial camera brands featuring RJ45 interfaces:
- Basler
- Sony
- Allied Vision (AVT)
- Cognex
- Teledyne DALSA
- JAI
- IDS
- KEYENCE
- FLIR
- The Imaging Source
- Omron
- Viewworks
Superior Signal Performance
The meticulously engineered internal structure ensures consistent data transmission for your mission-critical imaging applications:
- Cat5E Performance: Supports full GigE Vision bandwidth requirements
- Color-Coded Conductors: Enables easy troubleshooting and custom termination
- Reduced EMI Susceptibility: Minimizes interference from nearby machinery
